SWD Dual-Lead Precision Worm Gearbox

Low-backlash right-angle worm gearbox for servo-driven rotary axes, indexing tables, machine tool adjustment, and precision automation.

Key Range

Download documents

Technical Datasheets

Item	Data
Product name	SWD Dual-Lead Precision Worm Gearbox
Product type	Low-backlash precision worm gearbox
Transmission structure	Dual-lead worm transmission
Main function	Precision right-angle transmission with backlash control
Recommended size range	50 / 55 / 63 / 75 / 90
Comprehensive size line	SWD25–110; verification required before public expansion
Ratio options	5.2 / 7.25 / 10.25 / 14.5 / 19.5 / 30 / 45 / 60 / 90
Output torque	14–1,015 N·m series reference
Backlash class	P0 / P1
Mounting positions	B3 / B6 / B8 / B7 / V5 / V6
Servo flange examples	AQA60 / AQA80 / AQA90 / AQA110 / AQA130 / AQA180
Input direction	Servo motor, AQA flange, no-backlash coupling
Output direction	Output shaft, shrink sleeve, flange, machine-side interface

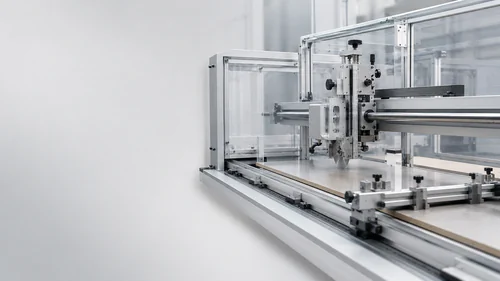

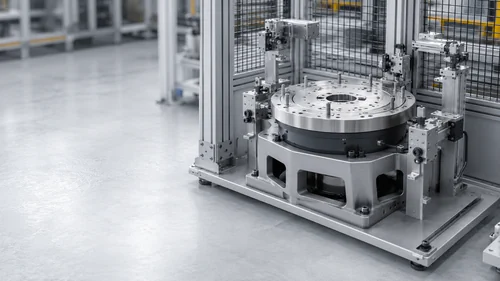

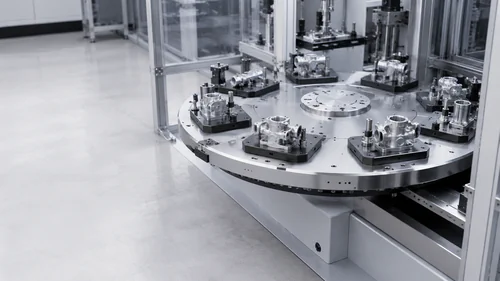

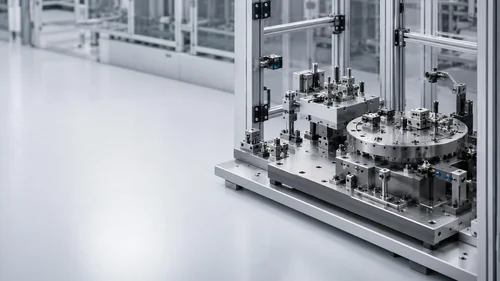

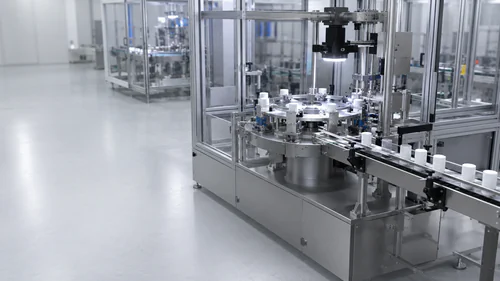

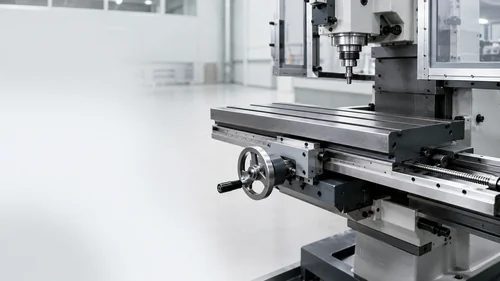

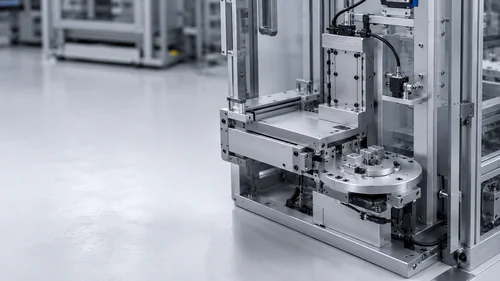

Best fit	Servo right-angle axes, indexing tables, rotary positioning, machine tool adjustment, cutter drives, automation fixtures, packaging inspection equipment, and compact precision machinery

Selection Item	Reference Data
Conservative public size range	SWD50 / SWD55 / SWD63 / SWD75 / SWD90
Full size line direction	SWD25–SWD110, confirm before public expansion
Ratio options	5.2–90
Output torque reference	14–1,015 N·m
Backlash class	P0 / P1
P0 reference	SWD50/55/63: 2 arcmin; SWD75/90: 1 arcmin
P1 reference	SWD50/55/63: 3–5 arcmin; SWD75/90: 2–4 arcmin
Servo flange direction	AQA60–AQA180 by servo motor frame and shaft
Mounting position	B3 / B6 / B8 / B7 / V5 / V6
Output connection	Shaft, flange, shrink sleeve, or machine-side custom interface
Key selection check	Backlash class, ratio, torque, servo motor, inertia, motion profile, reversing frequency, mounting position, and drawing

Is SWD the same as NMRV worm reducer?

No. SWD is a dual-lead precision worm gearbox for low-backlash right-angle servo transmission. NMRV / RV is a general compact worm gear reducer for economical fixed-ratio right-angle reduction.

What does dual-lead worm mean?

A dual-lead worm uses different lead geometry on the worm tooth flanks. By moving the worm axially, the effective meshing clearance changes, allowing backlash adjustment.

What is the main advantage of SWD?

The main advantage is backlash-controlled right-angle transmission for servo-driven precision motion. It is suitable when positioning repeatability, adjustment accuracy, and servo flange matching matter.

Can SWD be used with a servo motor?

Yes. SWD can be matched with servo motors through AQA flange options. Servo motor brand, frame, shaft, flange, rated speed, torque, brake, and encoder clearance should be confirmed before drawing release.

Can backlash be adjusted after long-term use?

Backlash adjustment is a key direction of dual-lead worm design. The actual adjustment should follow the product manual and should be reviewed according to gearbox wear, load, lubrication, and service condition.

When should SCK be selected instead of SWD?

SCK should be reviewed when the application needs compact right-angle transmission with RV-compatible mounting and higher-efficiency hypoid gear direction, but does not require precision backlash-class control.

What information is needed before quotation?

Send backlash class, ratio, servo motor model, output torque, output speed, mounting position, output form, motion profile, duty cycle, and working environment. For replacement, include the existing gearbox nameplate, drawing, and installation photos.
