SCK Helical-Hypoid Gear Unit

Compact RV-compatible helical-hypoid reducer for right-angle drives, conveyor upgrades, packaging machines, and OEM equipment.

Key Range

Download documents

Technical Datasheets

Item	Data

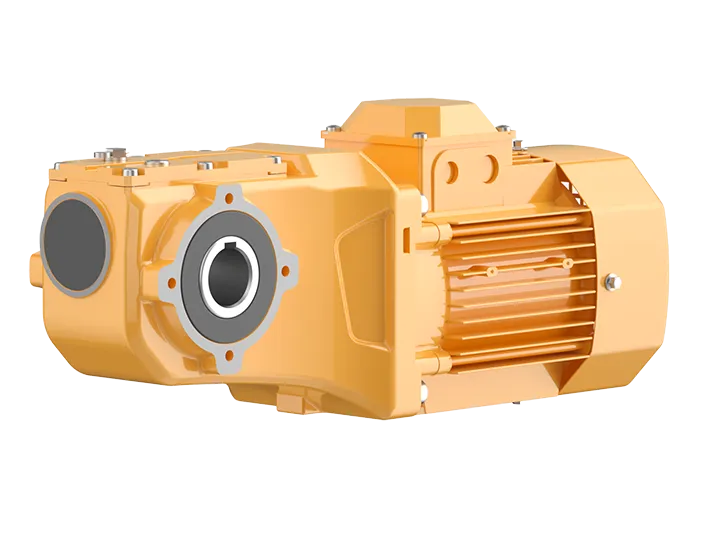

Product name	SCK Helical-Hypoid Gear Unit
Product type	Compact right-angle helical-hypoid gear reducer
Main function	RV-compatible right-angle upgrade and compact 90-degree transmission
Size range	SCK50–SCK90
Ratio range	7.5–300
Output speed	4.7–186 r/min
Input power	0.12–4 kW
Rated output torque	130–500 N·m
Housing material	Aluminum alloy
Gear material	20CrMnTi
Gear surface hardness	58–62 HRC
Installation direction	All-position installation; RV-compatible mounting direction
Input forms	Direct AC motor, square flange, input flange, adapter-based input where supported
Output forms	Output shaft, output flange, mounting interface confirmed by drawing

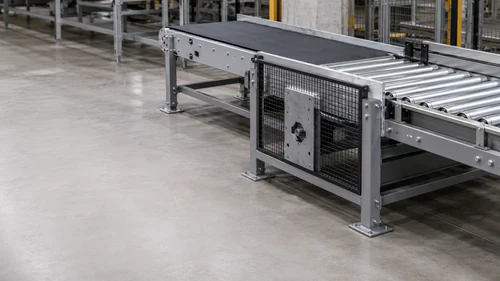

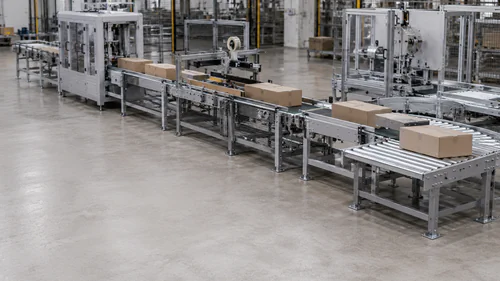

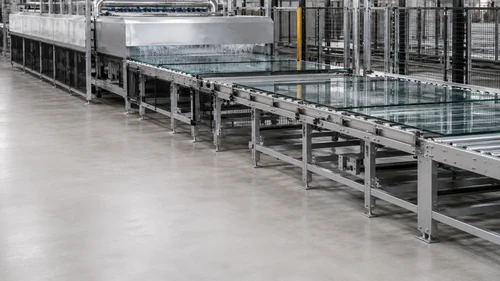

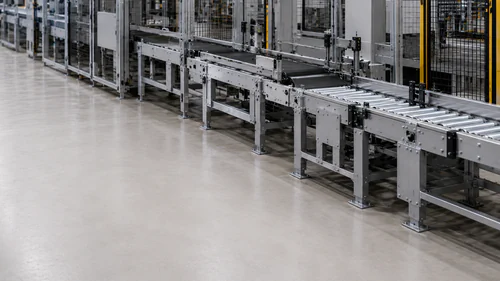

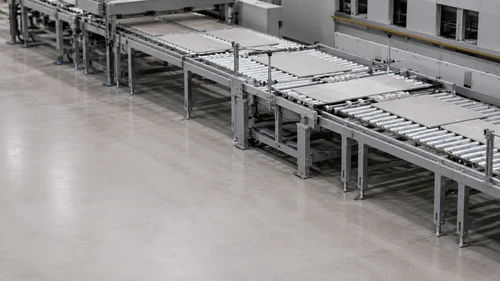

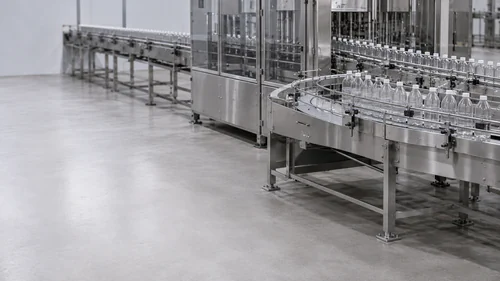

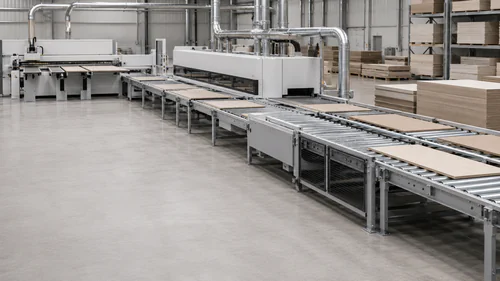

Best fit	RV upgrade projects, compact right-angle drives, small conveyors, packaging equipment, food machinery, automation equipment, ceramic and glass transfer sections, and woodworking machinery

Model	Rated Output Torque	Typical Use Direction
SCK50	130 N·m	Compact small right-angle drive positions
SCK63	200 N·m	Small and medium conveyor or automation drives
SCK75	350 N·m	Medium compact right-angle transmission
SCK90	500 N·m	Higher-torque direction within the confirmed SCK range

Is SCK the same as an RV worm gear reducer?

No. SCK is a helical-hypoid right-angle gear unit. RV / NMRV is a worm gear reducer family. SCK is relevant when the customer wants an RV-compatible mounting direction with a helical-hypoid transmission structure.

Can SCK replace an RV worm gear reducer?

SCK can be reviewed for RV replacement or upgrade projects, but replacement should be confirmed by size, ratio, shaft diameter, flange dimensions, mounting hole position, output direction, and installation drawing.

What is the main advantage of SCK compared with NMRV / RV?

SCK provides a helical-hypoid transmission direction for customers who want to review higher efficiency and smoother right-angle transmission than a standard worm reducer layout. NMRV / RV remains suitable when a standard economical worm reducer is the priority.

What is the difference between SCK and K Series?

SCK is a compact RV-compatible helical-hypoid gear unit for small and medium drive positions. K Series is a larger modular helical-bevel right-angle reducer for broader torque and power coverage.

What is the difference between SCK and S Series?

SCK uses a helical-hypoid structure and is positioned around RV upgrade and compact right-angle transmission. S Series belongs to the RFKS family and uses a helical-worm structure.

Can SCK be supplied with a motor?

Yes. SCK can be reviewed with direct AC motor input and other motor interface configurations. When supplied as a motor-reducer package, motor frame, flange, shaft, voltage, speed, terminal box position, and drawing should be confirmed.

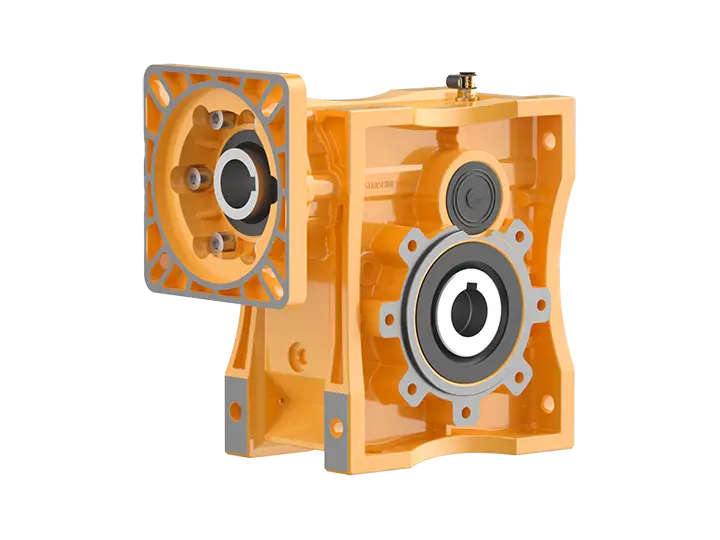

What does AQA mean on SCK configurations?

AQA should be treated as a servo adapter or flange-input direction. The exact flange dimensions, servo motor interface, input speed, and torque requirement should be confirmed by drawing.

Can SCK200 or SCK200-SMT be published as fixed models?

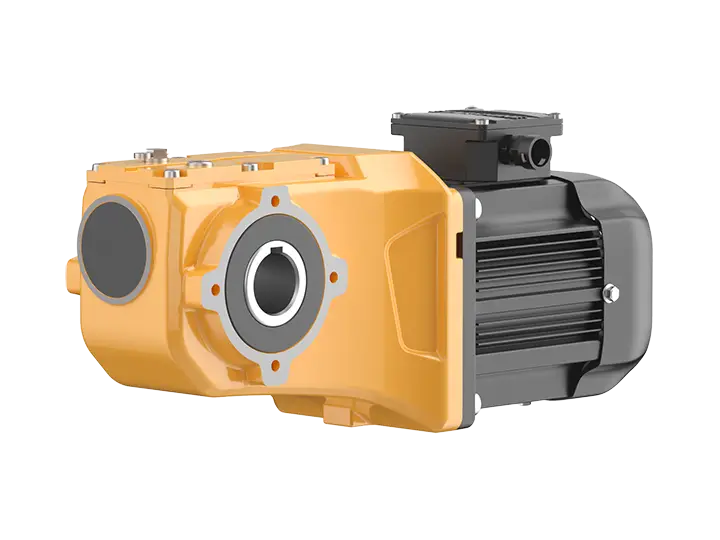

Current reliable project data supports SCK50–90 as the confirmed SCK range. SCK200 and SCK200-SMT should remain engineering-confirmation items until factory datasheets, drawings, and motor-reducer combination data are available.

Can Starshine provide drawings and CAD files?

2D drawings and 3D CAD files can be requested after the SCK size, ratio, input form, output shaft, mounting position, and motor interface are confirmed.
